TowerPro MG995 Metal Gear Servo Motor 180 Degree Rotation

TowerPro MG995 Metal Gear Servo Motor (180° Rotation)

The TowerPro MG995 is a high-torque servo motor designed for applications requiring strong and precise angular control. Featuring durable metal gears and powerful torque output, it is widely used in robotics, RC vehicles, and automation systems.

Key Features

• 180° Rotation: Precise position control (~0–180° range)
• High Torque Output: Up to ~10–12 kg·cm depending on voltage
• Metal Gear Construction: Enhanced durability and load handling
• PWM Control: Standard 3-wire interface (VCC, GND, Signal)
• Fast Response: Quick and accurate positioning
• Robust Design: Suitable for heavy-duty applications

Applications

• Robotics: Robotic arms, joints, and grippers
• RC Vehicles: Steering and control systems
• Automation Systems: Actuators and mechanical movement
• Pan-Tilt Mechanisms: Camera and sensor positioning
• DIY Electronics: High-load motion control projects

Technical Specifications

• Model: MG995
• Operating Voltage: 4.8V – 7.2V
• Torque:
  • ~10 kg·cm @ 4.8V
  • ~12 kg·cm @ 6V
• Rotation Angle: ~180°
• Speed: ~0.16–0.20 sec/60° (no load)
• Weight: ~55g
• Control Signal: PWM (50 Hz)
• Connector: 3-pin (JR type)

Product Example

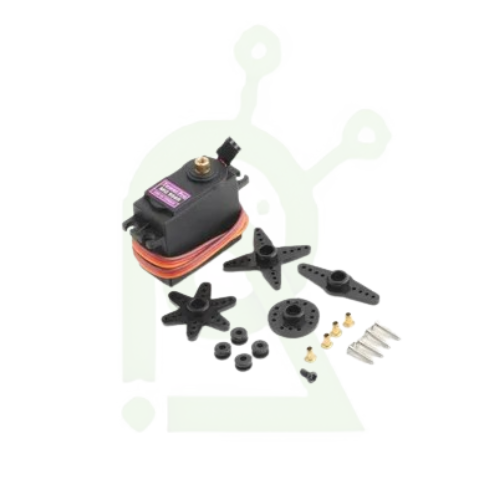

TowerPro MG995 Metal Gear Servo Motor (180 Degree)
High-torque servo motor for demanding robotics and automation applications.

Why Choose MG995?

The MG995 is a popular choice when higher torque and durability are required compared to micro servos. Its metal gears and strong motor make it suitable for applications involving heavier loads and continuous operation.

⚠️ Important Notes

• Requires external power supply (Arduino 5V pin is not sufficient under load)
• Use proper current supply (~1–2A) for stable performance
• Avoid stalling the motor to prevent overheating
