SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission (Copy)

SX1278 LoRa Module RA-02 (433MHz) Wireless Transceiver

The SX1278 LoRa RA-02 module is a long-range wireless communication module based on LoRa (Long Range) spread spectrum technology. Operating at 433MHz, it is designed for low-power, long-distance data transmission, making it ideal for IoT, remote sensing, and industrial applications.

Key Features

• LoRa Technology: Long-range and high interference immunity
• 433MHz Frequency: Better penetration and range in many environments
• Ultra-Long Range: Up to several kilometers (environment dependent)
• Low Power Consumption: Ideal for battery-powered devices
• High Sensitivity: Excellent reception even at weak signal levels
• SPI Interface: Easy communication with microcontrollers

Applications

• IoT Networks: Long-distance sensor communication
• Smart Agriculture: Remote monitoring systems
• Industrial Automation: Data transmission in large facilities
• Wireless Sensor Networks: Environmental monitoring
• DIY Electronics: Long-range communication projects

Technical Specifications

• Chipset: SX1278
• Module: RA-02
• Frequency: 433 MHz
• Modulation: LoRa / FSK / GFSK
• Output Power: Up to +20 dBm
• Receiver Sensitivity: Up to -148 dBm
• Interface: SPI
• Operating Voltage: 1.8V–3.7V (3.3V typical)
• Data Rate: 0.3 kbps to 37.5 kbps (LoRa mode)
• Range: Up to 5–10 km (open area, with proper antenna)

Product Example

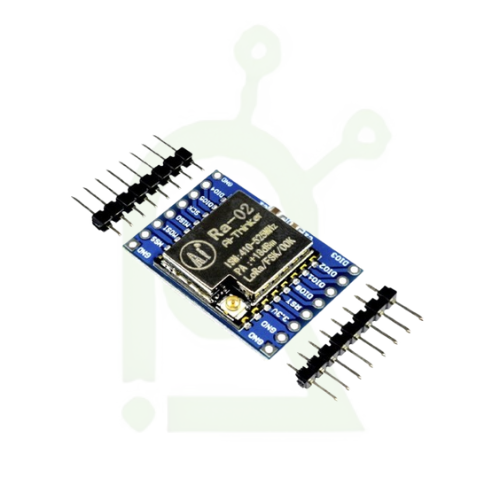

SX1278 LoRa RA-02 433MHz Wireless Module
High-performance long-range wireless module for IoT and remote communication applications.

Why Choose LoRa (SX1278)?

LoRa modules like the SX1278 are designed for applications requiring long-range communication with low power consumption. Compared to Wi-Fi or Bluetooth, they offer significantly greater range and better performance in challenging environments.
