MAX1279 8 x 8 Matrix Led

MAX7219 8×8 LED Matrix Module

The MAX7219 8×8 LED Matrix Module is a compact display unit used to show characters, symbols, and simple graphics. It uses the MAX7219 driver IC, which simplifies control by reducing the number of required microcontroller pins, making it ideal for Arduino and embedded projects.

Key Features

• 8×8 LED Matrix: 64 LEDs arranged in a grid
• MAX7219 Driver IC: Simplifies control using serial interface
• SPI Communication: Requires only a few pins (DIN, CS, CLK)
• Daisy Chain Support: Multiple modules can be connected together
• Brightness Control: Adjustable via software
• Low Power Operation: Efficient LED driving

Applications

• Text Display: Scrolling messages and characters
• Arduino Projects: Visual output for data and animations
• Clocks & Counters: Digital displays
• DIY Electronics: Creative LED patterns and graphics
• IoT Devices: Status indicators and alerts

Technical Specifications

• Driver IC: MAX7219
• Display Type: 8×8 LED Matrix
• LED Count: 64 LEDs
• Interface: SPI (DIN, CS, CLK)
• Operating Voltage: 5V
• Control: Serial communication
• Operating Temperature: Typically 0°C to 50°C

Product Example

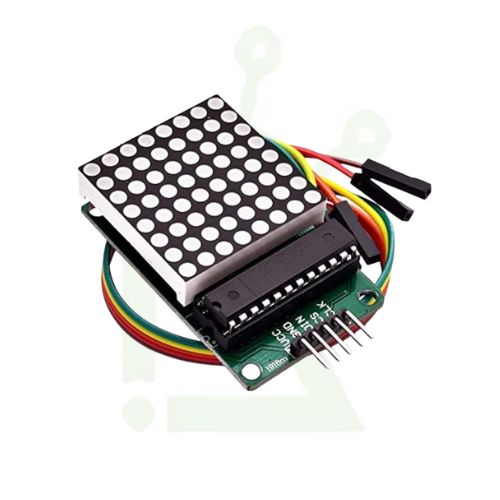

MAX7219 8×8 LED Matrix Display Module
Compact and easy-to-use LED display module for text and graphical output.

Why Choose This Module?

The MAX7219 module makes controlling multiple LEDs extremely simple by handling multiplexing internally. It reduces wiring complexity and is perfect for projects requiring visual output with minimal microcontroller resources.
