IC 7474 Dual D-Type Flip-Flop

IC 7474 Dual D-Type Flip-Flop

The IC 7474 is a digital logic integrated circuit that contains two independent D-type (Data) flip-flops with preset and clear inputs. It is part of the 74xx TTL family and is widely used for data storage, timing, and sequential logic operations.

Each flip-flop captures the input data on the rising edge of the clock signal, making it ideal for synchronization and memory applications in digital circuits.

Key Features

• Logic Type: D-Type Flip-Flop
• Number of Flip-Flops: 2 (Dual)
• Edge Triggered: Positive (rising edge)
• Preset & Clear Inputs: Asynchronous control
• TTL Compatible: Operates with 5V logic
• Fast Switching: Suitable for sequential circuits
• Standard DIP Package: Easy to use on breadboards

Applications

• Data Storage: 1-bit memory elements
• Shift Registers: Sequential data movement
• Counters & Timers: Clock-based operations
• Synchronization Circuits: Signal timing control
• Digital Systems: State machines and logic design

Technical Specifications

• IC Type: 7474 (TTL Logic IC)
• Supply Voltage (Vcc): 5V
• Flip-Flop Type: D-Type (Positive Edge Triggered)
• Inputs: D (Data), CLK (Clock), PRE (Preset), CLR (Clear)
• Outputs: Q and Q̅ (complement)
• Propagation Delay: ~10–20ns (typical)
• Package: DIP-14

Product Example

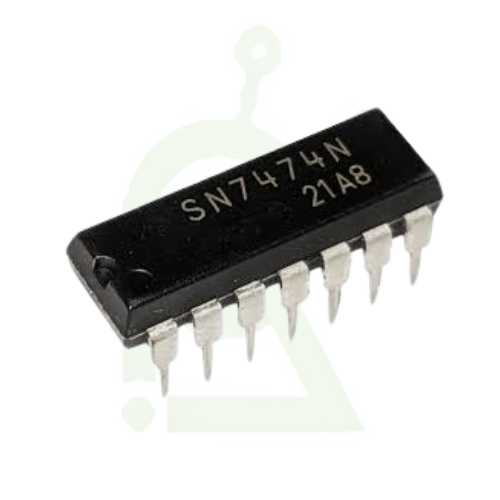

IC 7474 Dual D Flip-Flop (DIP-14)
A reliable IC for sequential logic and memory-based applications.

Why Choose IC 7474?

The 7474 is essential for sequential logic design, allowing storage and synchronization of data in digital systems. It is widely used in learning environments and real-world applications for building counters, registers, and timing circuits.

⚠️ Important Notes

• Operates at 5V (TTL logic)
• Preset and Clear are active LOW
• Ensure proper clock signal for correct operation
• Avoid floating inputs—tie unused inputs properly
• Handle carefully to prevent static damage
