HX710B Air Pressure Sensor Module

The HX710B Air Pressure Sensor Module is a high-precision 24-bit analog-to-digital converter (ADC) designed for air pressure measurement applications. It is commonly used with differential or gauge pressure sensors to provide accurate and stable digital output, making it ideal for environmental monitoring and embedded systems.

Key Features

• 24-bit High-Resolution ADC – Accurate and stable pressure readings
• Low Noise Performance – Suitable for sensitive measurement applications
• Digital Output Interface – Easy connection with microcontrollers
• High Sensitivity – Detects small pressure variations
• Low Power Consumption – Ideal for battery-powered systems
• Compact Design – Easy to integrate into projects

Applications

• Barometric Pressure Measurement – Weather and environmental monitoring
• Altitude Sensing – Drones and portable devices
• Industrial Monitoring – Pressure-based control systems
• Medical Devices – Air pressure-related sensing
• IoT Projects – Smart environmental systems

Technical Specifications

• ADC Resolution: 24-bit
• Input Type: Differential analog input (from pressure sensor)
• Operating Voltage: 2.6V – 5.5V
• Output Interface: Digital (clock + data lines)
• Gain: Programmable (typically 32/64/128 depending on configuration)
• Sampling Rate: ~10Hz / 40Hz (configurable)
• Operating Temperature: -20°C to +85°C

Product Example

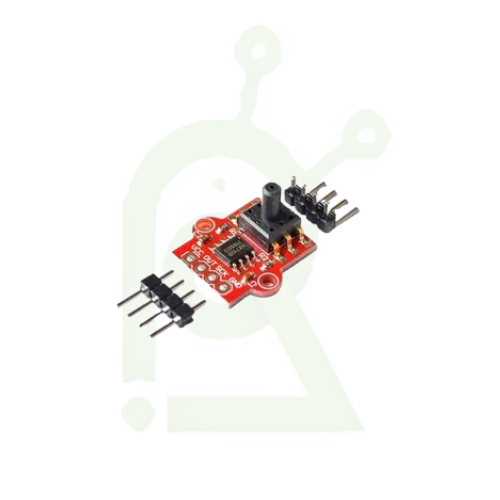

HX710B 24-bit ADC Air Pressure Sensor Module
A precision interface module for connecting pressure sensors to microcontrollers.

Why Choose HX710B Module?

• High accuracy for pressure sensing applications
• Stable and low-noise signal processing
• Easy interfacing with Arduino, ESP32, etc.
• Cost-effective solution for precise measurements
• Widely used in DIY and industrial projects

⚠️ Important Notes

• This is not a standalone pressure sensor — requires an external pressure sensing element
• Proper calibration is necessary for accurate readings
• Keep wiring short to reduce noise interference
• Ensure stable power supply for best performance
• Not suitable for direct high-pressure input without proper sensor
