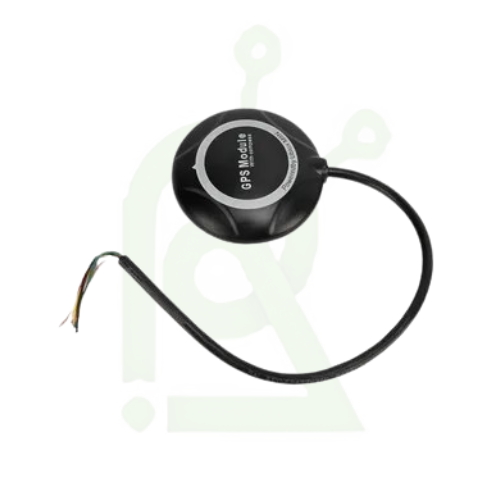

GPS Module for Pixhawk Flight Controller

The GPS Module for Pixhawk Flight Controller is an essential navigation component that enables accurate positioning, waypoint navigation, and autonomous flight. It typically combines a high-sensitivity GPS receiver with an integrated compass (magnetometer) for precise orientation and location tracking.

Designed to work seamlessly with Pixhawk and other flight controllers, it ensures stable flight performance and reliable mission execution.

Key Features

• High-Precision Positioning: Accurate latitude, longitude, and altitude data
• Integrated Compass: Built-in magnetometer for direction sensing
• Fast Satellite Lock: Quick acquisition of GPS signals
• Plug & Play Compatibility: Designed for Pixhawk and APM controllers
• High Sensitivity Receiver: Works even in weak signal environments
• LED Status Indicator: Shows GPS lock and activity
• Compact & Lightweight: Easy to mount on drones

Applications

• Autonomous Drones: Waypoint navigation and mission planning
• Return-to-Home (RTH): Safety feature during signal loss
• Aerial Mapping & Surveying: Accurate positioning
• Agriculture Drones: Field monitoring and automation
• Robotics Projects: GPS-based navigation systems

Technical Specifications

• Module Type: GPS + Compass (Magnetometer)
• Common Chipsets: u-blox NEO-6M / NEO-M8N (model dependent)
• Protocol: UART / I2C (for compass)
• Update Rate: 1Hz – 10Hz
• Position Accuracy: ~2.5m (varies by model)
• Power Supply: 5V
• Connector: 6-pin cable (Pixhawk standard)
• Mounting: External mast recommended

Product Example

u-blox NEO-M8N GPS Module with Compass for Pixhawk
A reliable GPS unit for accurate navigation and stable autonomous flight.

Why Choose GPS Module for Pixhawk?

A GPS module is critical for unlocking advanced features like position hold, return-to-home, and waypoint missions. With an integrated compass, it significantly improves flight stability and directional accuracy, especially in autonomous operations.

⚠️ Important Notes

• Mount GPS away from power wires and ESCs to avoid interference
• Always perform compass calibration before flight
• Wait for sufficient satellite lock (8+ satellites recommended)
• Use elevated mounting (GPS mast) for best performance
• Ensure correct port connection (GPS vs I2C)
