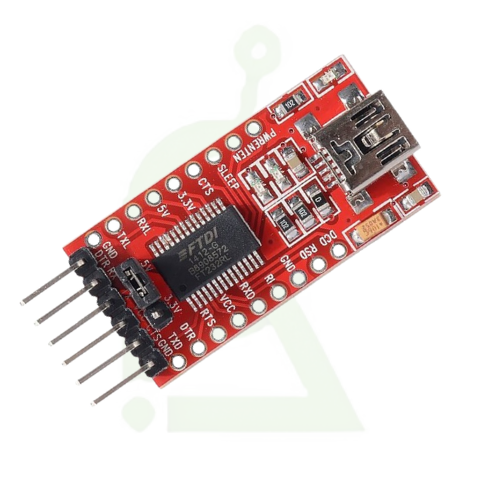

FT232RL to UART TTL Converter

FT232RL to UART TTL Converter Module

The FT232RL to UART TTL Converter is a reliable USB-to-Serial interface module used for communication between a computer and microcontrollers. It is widely used for programming and debugging boards like Arduino, ESP8266, ESP32, and other embedded systems.

Key Features

• FT232RL Chipset: High-performance and stable USB-to-Serial conversion
• USB to UART TTL Interface: Enables communication with microcontrollers
• Multiple Voltage Levels: Supports 3.3V and 5V output selection
• Plug and Play: Easy connection via USB
• Onboard LEDs: Indicate power, TX, and RX activity
• Compact Design: Breadboard-friendly and easy to use

Applications

• Microcontroller Programming: Upload code to Arduino, ESP8266, ESP32
• Serial Communication: PC-to-device data transfer
• Debugging: Monitor serial output from embedded systems
• DIY Electronics: General-purpose USB to UART conversion
• Firmware Development: Flashing and testing devices

Technical Specifications

• Chipset: FT232RL
• Interface: USB to UART TTL
• Logic Levels: 3.3V / 5V selectable
• Operating Voltage: 5V via USB
• Baud Rate: Up to ~3 Mbps
• Pins: TX, RX, VCC, GND, RTS, CTS
• Compatibility: Windows, Linux, macOS
