Can Module MCp2515

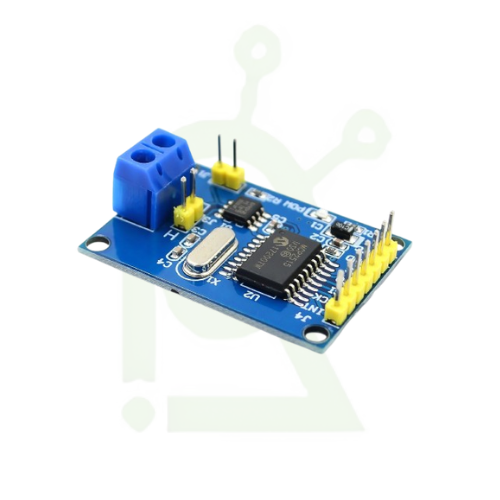

MCP2515 CAN Bus Module (SPI Interface)

The MCP2515 CAN Bus Module is a widely used controller module that enables CAN (Controller Area Network) communication for microcontrollers like Arduino and ESP32. It uses the MCP2515 CAN controller along with a CAN transceiver to provide reliable, high-speed communication in automotive and industrial applications.

Key Features

• MCP2515 CAN Controller – Supports CAN V2.0B protocol
• SPI Interface – Easy communication with microcontrollers
• High-Speed Communication – Up to 1 Mbps data rate
• Onboard CAN Transceiver – Converts logic-level signals to CAN bus levels (e.g., TJA1050)
• Standard DB9 / Screw Terminal Interface – Easy CAN bus connection
• Interrupt Output – Efficient event-driven communication
• Compact Module Design – Suitable for embedded systems

Applications

• Automotive Systems – ECU communication, diagnostics
• Industrial Automation – Machine-to-machine communication
• Robotics – Multi-controller communication networks
• Smart Devices – Distributed control systems
• IoT Gateways – CAN-based data integration

Technical Specifications

• Controller IC: MCP2515
• CAN Protocol: CAN V2.0B
• Interface: SPI
• Data Rate: Up to 1 Mbps
• Operating Voltage: 5V (logic level may vary)
• Transceiver IC: Typically TJA1050 / MCP2551 (module dependent)
• Oscillator: 8 MHz / 16 MHz crystal
• Operating Temperature: -40°C to +85°C

Product Example

MCP2515 CAN Bus Module with TJA1050 Transceiver
A reliable CAN communication module for Arduino, ESP32, and embedded systems.

Why Choose MCP2515 Module?

• Enables CAN communication on non-CAN microcontrollers
• Reliable and widely used in industry
• Easy SPI integration
• Supports long-distance communication
• Cost-effective solution

⚠️ Important Notes

• Requires termination resistor (120Ω) at both ends of CAN bus
• Ensure correct SPI pin connections
• Logic level may need adjustment (3.3V vs 5V systems)
• Use proper CAN wiring (CANH, CANL)
• Libraries required for software integration
