Analog Joystick Module

Analog Joystick Module

The Analog Joystick Module is a versatile input device used to control movement in two axes (X and Y) along with a push-button switch. It is widely used in gaming controls, robotics, and embedded systems for intuitive directional input.

Key Features

• Dual-Axis Control: Provides analog output for X and Y directions
• Integrated Push Button: Press function for additional input
• Analog Output: Variable voltage based on joystick position
• High Precision: Smooth and responsive movement detection
• Compact Design: Easy to mount on breadboards and PCBs
• Easy Interface: Compatible with Arduino, ESP32, and other microcontrollers

Applications

• Robotics: Direction and motion control
• Arduino & Microcontroller Projects: User input interface
• Gaming Controllers: DIY joystick-based systems
• IoT Devices: Navigation and control input
• DIY Electronics: Interactive and control-based projects

Technical Specifications

• Operating Voltage: 3.3V–5V
• Output Type: Analog (X, Y) + Digital (Switch)
• Axes: 2 (X and Y)
• Switch Function: Yes (push button)
• Interface: ADC + GPIO
• Center Position Output: ~VCC/2
• Operating Temperature: Typically 0°C to 50°C

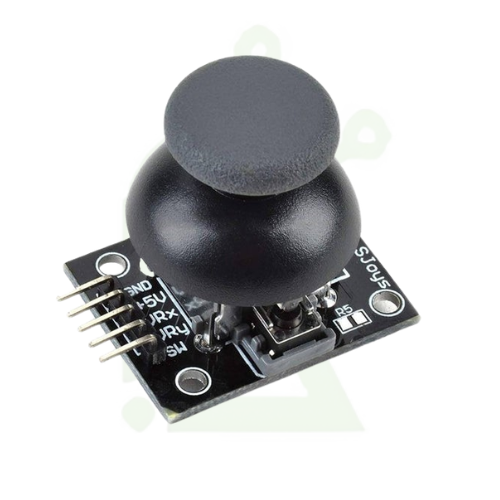

Product Example

Analog Joystick Module
Responsive and easy-to-use input device for directional control in electronics and robotics projects.

Why Choose This Module?

The analog joystick module provides intuitive and precise control for a wide range of applications. With both analog movement and a digital click function, it is ideal for projects requiring user interaction and control.
