6×6×7mm Tactile Push Button Switch (Non-Latching)

The 6×6×7mm Tactile Push Button Switch (Non-Latching) is a compact momentary switch designed for user input in electronic circuits. It provides a distinct tactile “click” when pressed and returns to its original state upon release.

With a taller actuator height compared to 5mm and 6mm variants, this switch offers improved accessibility and ease of pressing, especially in enclosed or panel-mounted designs.

Key Features

• Type: Tactile Push Button (Momentary / Non-Latching)
• Size: 6mm × 6mm × 7mm
• Operation: Normally Open (NO)
• Tactile Feedback: Clear click response
• Increased Height: Easier actuation in enclosures
• Through-Hole Mounting: PCB and breadboard compatible
• Durable Design: Long mechanical life

Applications

• Reset Buttons: Arduino, ESP, microcontrollers
• User Interface Controls: Menu navigation, triggers
• DIY Electronics Projects: General-purpose switching
• Embedded Systems: Control inputs
• Consumer Devices: Buttons in compact electronics

Technical Specifications

• Switch Type: Momentary (Non-Latching)
• Contact Type: Normally Open (NO)
• Operating Force: ~160–260 gf (typical)
• Voltage Rating: ~12V (model dependent)
• Current Rating: ~50mA (typical)
• Mounting Type: Through-hole
• Dimensions: 6×6×7 mm

Product Example

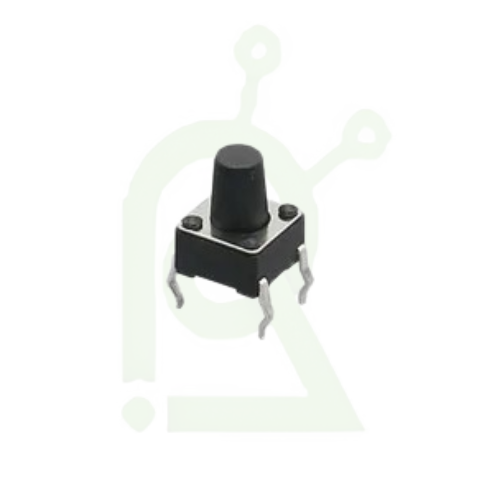

6×6×7mm Tactile Push Button Switch
A compact and taller tactile switch for improved usability in electronic circuits.

Why Choose This Tactile Switch?

The 7mm height provides better reach and ease of use, especially in cases where the button needs to extend above a surface or enclosure, while maintaining the same reliable tactile performance.

⚠️ Important Notes

• Non-latching: Active only when pressed
• Ensure correct pin alignment before soldering
• Use pull-up or pull-down resistors in circuits
• Not designed for high-current switching
• Avoid excessive force to maintain longevity
