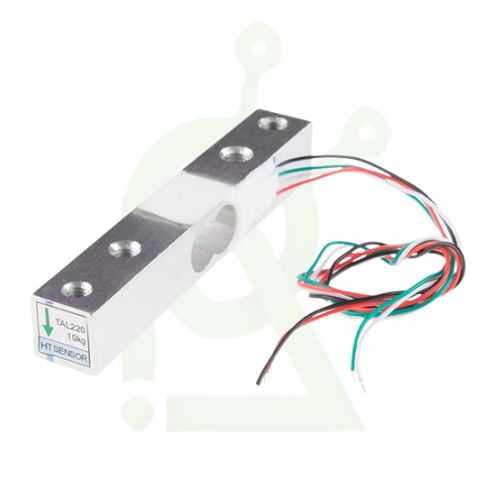

10 KG Load Cell

The 10KG Load Cell is a precision strain gauge sensor designed to measure forces up to 10 kilograms. Built with durable aluminum alloy and easy-to-mount design, it’s ideal for use in digital weighing systems, automation, and smart IoT applications. For accurate output, pair it with an HX711 amplifier module and interface with Arduino, ESP32, STM32, or Raspberry Pi.

Key Features:

• Load Capacity: 0 ? 10KG

• High Sensitivity: Ideal for precision weighing applications

• Strain Gauge Technology: Accurate, stable, and repeatable readings

• Material: Aluminum alloy with protective coating

• Wiring: 4-wire output (Red, Black, Green, White)

Specifications:

• Output: ~1.0 mV/V

• Recommended Excitation Voltage: 5V DC

• Mounting Holes: M4 compatible

• Dimensions: ~80mm x 13mm x 13mm (approx.)

Applications:

• Smart digital weighing scales

• Industrial automation systems

• Robotics and force detection

• IoT-based weight monitoring

• DIY Arduino & Raspberry Pi projects

Why Choose This 10KG Load Cell?

Engineered for reliability and precision, this load cell is the go-to solution for building custom weighing solutions and force-sensing devices. Whether you’re working on a smart kitchen scale or an industrial load monitor, this sensor delivers consistent results.
